Bolt Down Post Support

Bolt Down Post Supports by VUETRADE

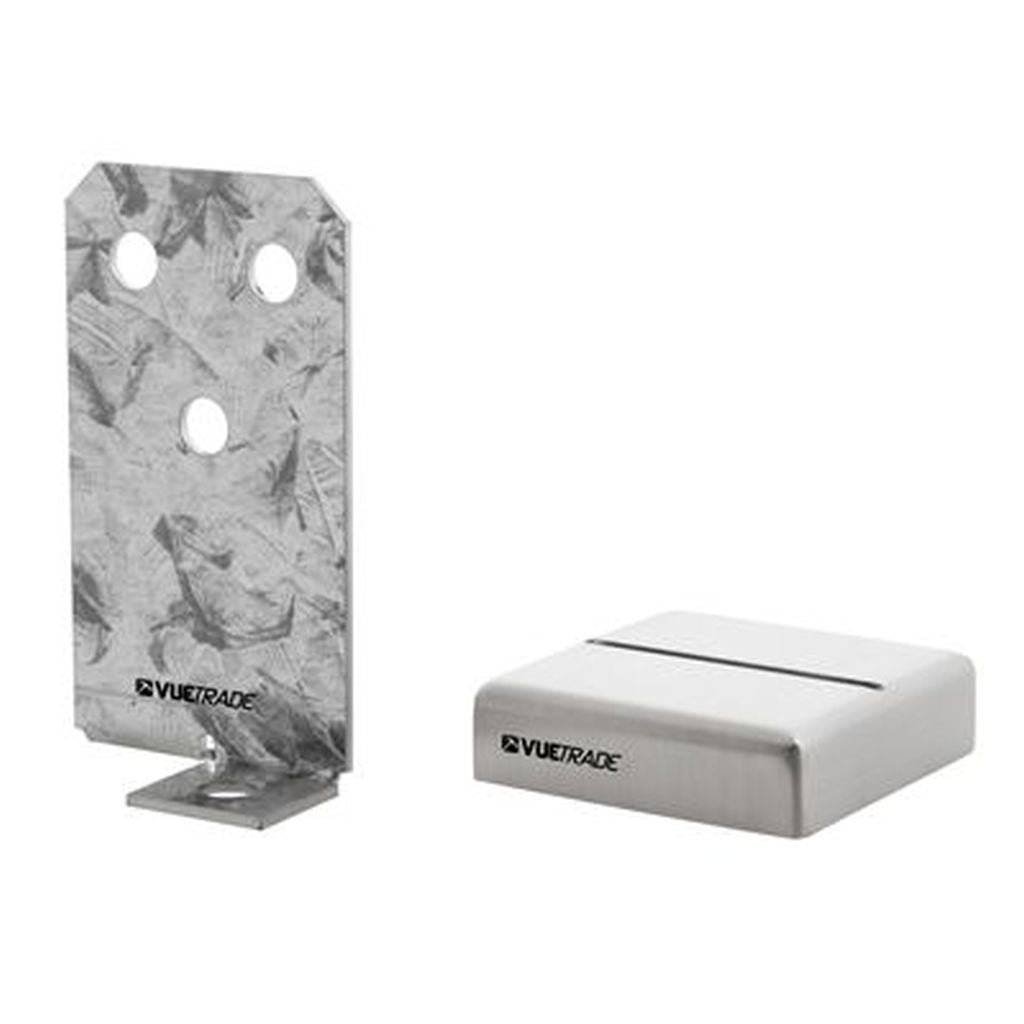

Type: Concealed: The VUETRADE Concealed Bolt Down Post Support Kit is a system ideal for fixing decorative timber posts with an architectural, concealed finish.

• Suits 90-100mm timber
• Architectural finish with concealed blade and cap
• 3.0mm thick steel blade
• 145mm Blade Height (including base plate)
• 80mm Blade Width
• Bolt Holes
  • 2 x M12 Bolt Holes (Base)
  • 3 x M12 Bolt Holes (Blade)
• Galvanised finish for durability and long-life
• Metal Thickness: 3.0mm

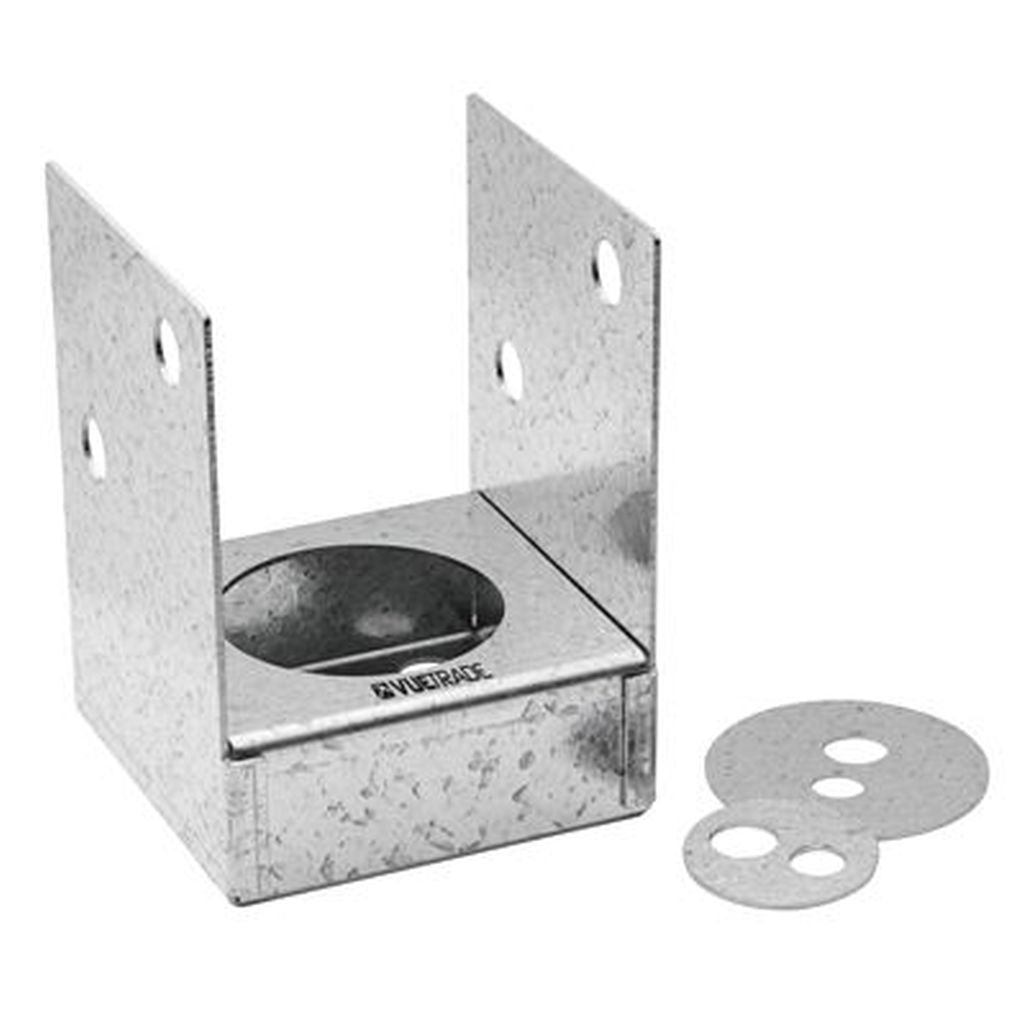

Type: Tradies: VUETRADE Tradies’ Bolt Down Post Supports are brackets ideal for bolting down timber posts into concrete, with either an open or concealed assembly.

• M10 & M12 Bolt Hole Options in Base
• Improved cap design – concealed or open assembly options
• Economical price point
• Galvanised finish for durability and long-life
• Australian Made – High quality, peace of mind, and supporting
  Aussie jobs

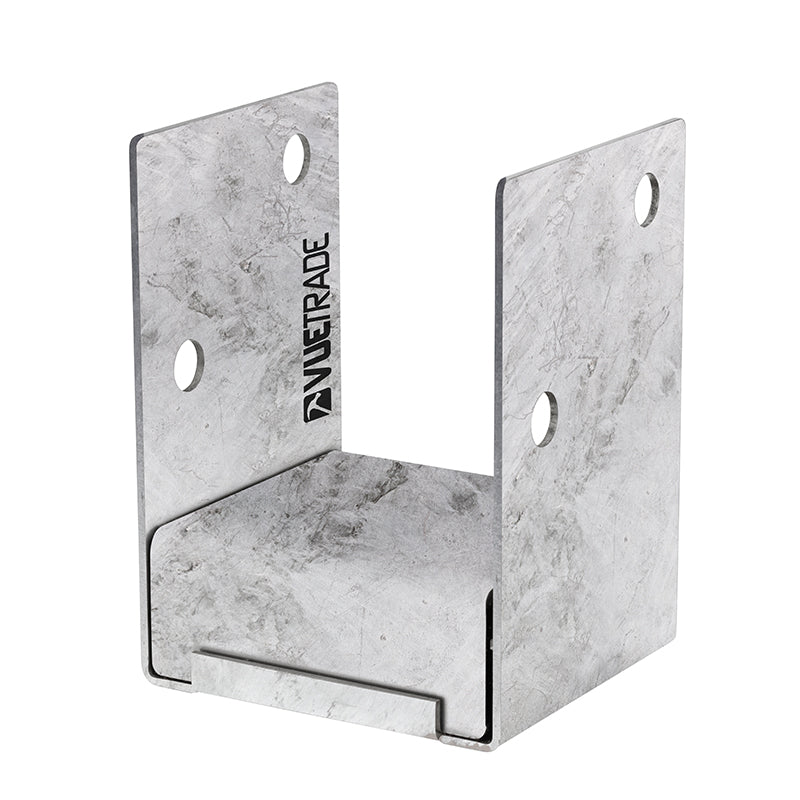

Type: Standard: VUETRADE Bolt Down Post Supports are connectors ideal for strong, concealed bolting of timber posts onto concrete bases.

• Improved design for extra strength
• 2 x M12 Bolt Holes (Saddle & Base)
• 3.0mm thick steel for 90mm & 100mm
• 4.0mm thick steel for 115mm & 125mm
• Galvanised or Stainless Steel finish for durability and long-life
• Metal Thickness (Galvanised Finish):
  • 90mm & 100mm: 3.0mm
  • 115mm & 125mm: 4.0mm
